HOLLSTEIN 8,000 Lbs. 4 Post Park Lift
Category: Parking & Storage Lifts
Price: 5,250 $
3,795 $

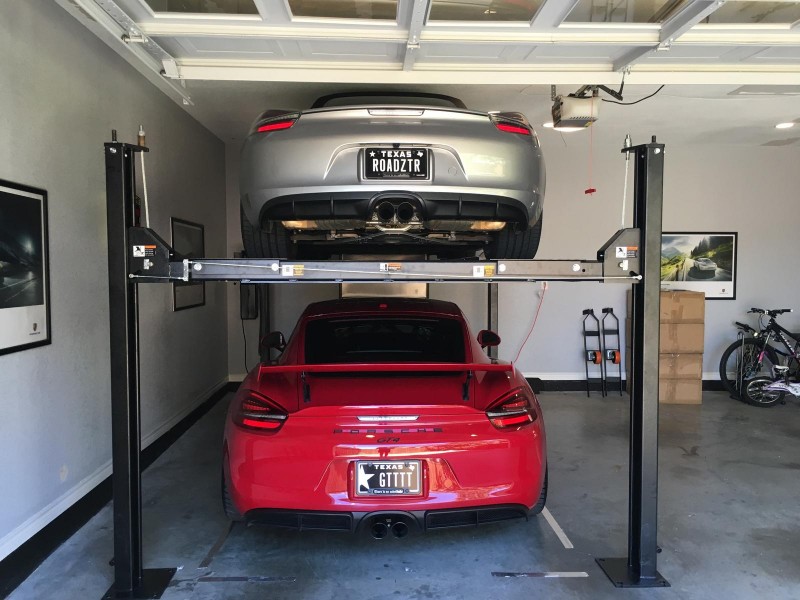

The LOCK LADDER SAFETY SYSTEM is an important feature that all our parking and storage lifts have built in. It can be identified in every picture of a silver colored lock ladder that is located in each of the 4 columns. They are height adjustable to accommodate the unevenness of every shop floor and must be adjusted to have level runways when the upper car is in it's parked position safely resting in the lock. Not all manufacturers pay attention to this important feature and don't provide adjustable lock ladders just to offer their products cheaper.
Limited time special offer. PICK UP from our closest warehouse or have it shipped at additional cost. Please call 570 639 2344 for availability.
- 8,000 Lbs lifting capacity,
- Carriages completely enclosed for safety
- Redundant ladder lock safety system with "auto engage" locking bar in the event of cable failure
- Extra large slider blocks for added stability
- 10 positive (always locking) lock positions
- Aircraft quality cables rated at each 14,500 lbs, there are 4 cables in this lift

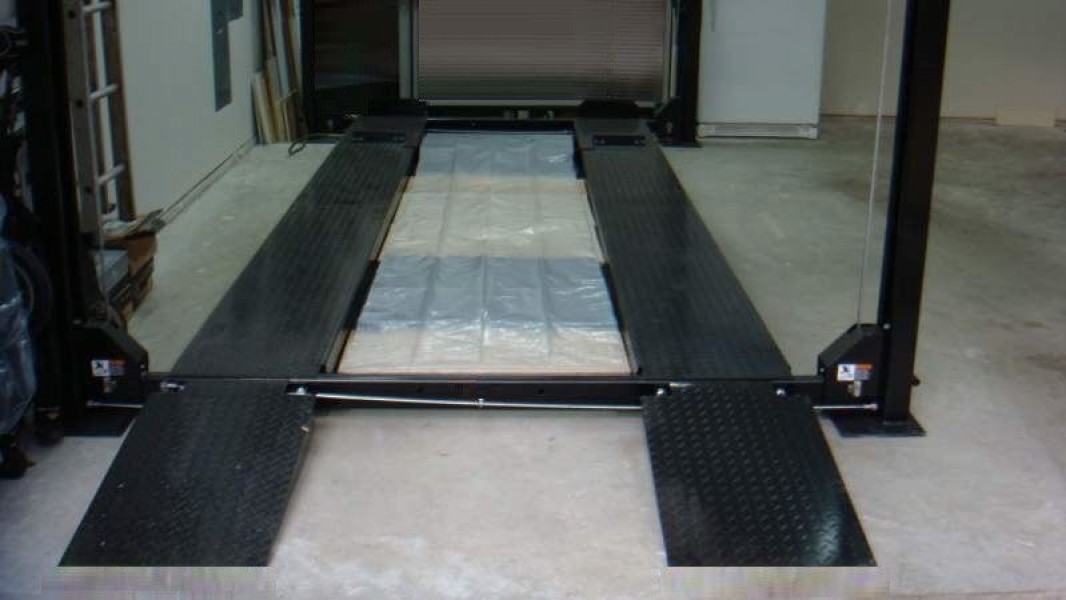

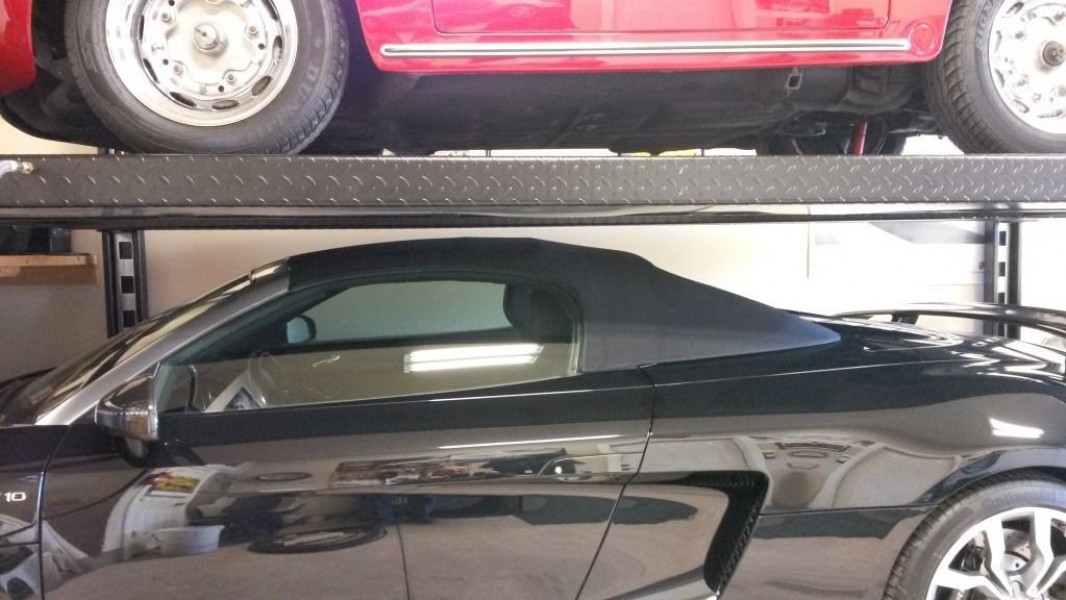

- 18" wide runways formed with one-piece 3/16" non-skid diamond plate
- Easy operation: Lock release lever and power unit control botton located left front or right rear of lift
- Powerful 3" diameter hydraulic piston
- Steel approach ramps standard, Aluminum Drive-On Ramps optional

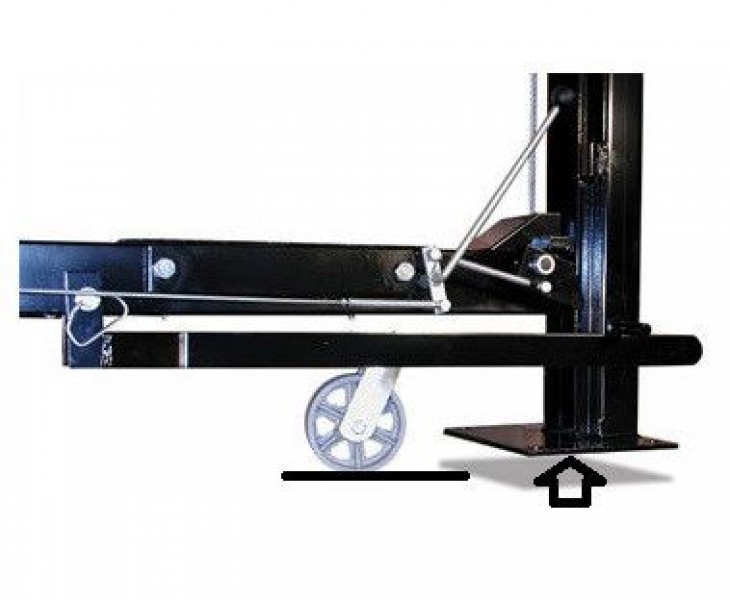

- For a limited time only we added the popular Jack/Tool tray, the POLY caster wheels to move the lift, and Drip Trays at no additional cost
- 110V/single phase power standard, but 220V Motor available

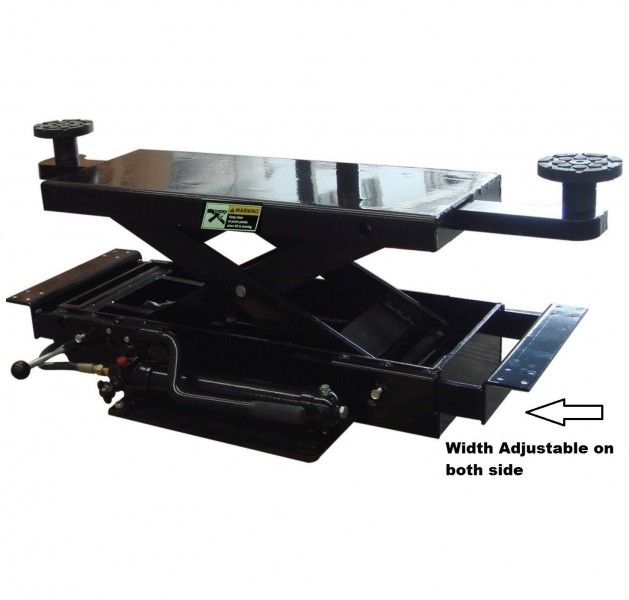

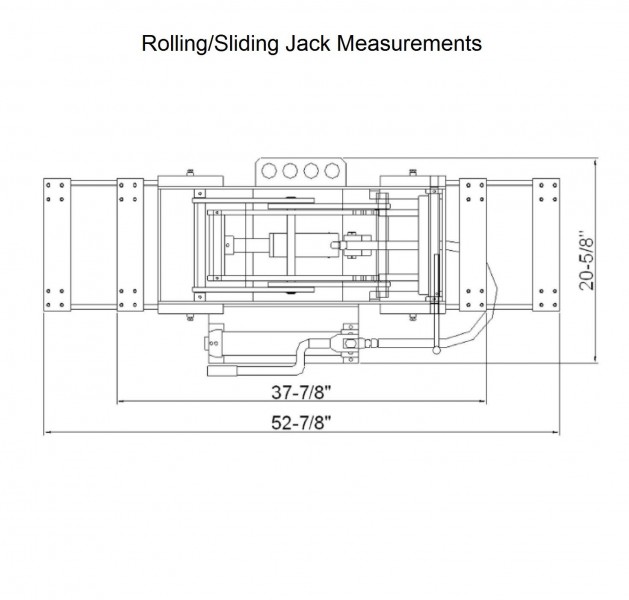

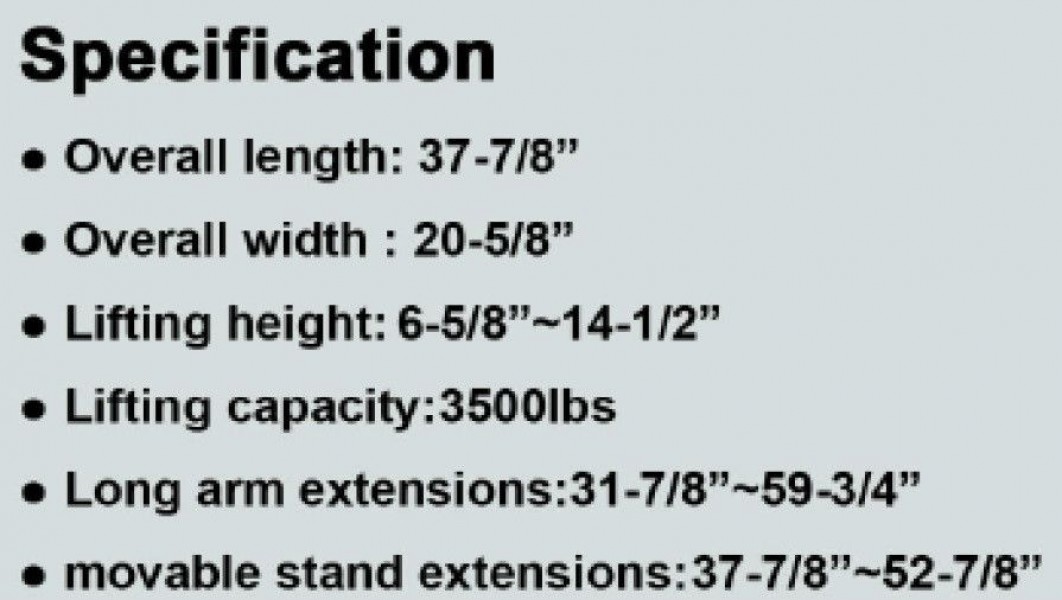

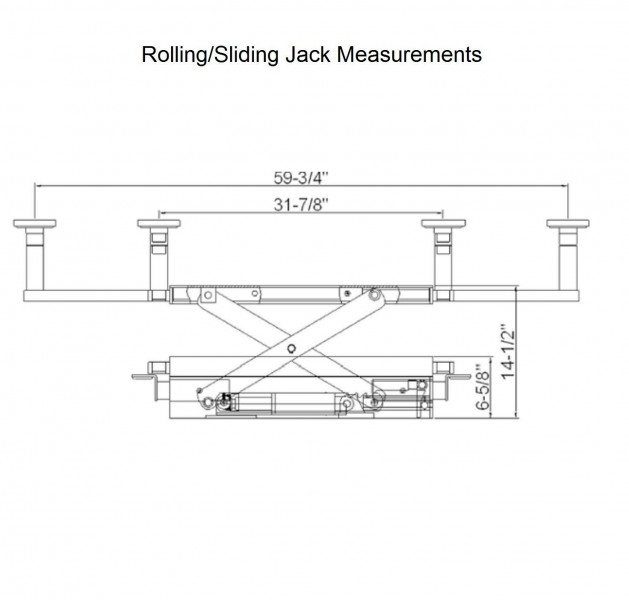

- Additional options available, for example; Sliding Jack with 3,500lbs lifting capacity
Click on the MAP below to find us on GOOGLE MAPS

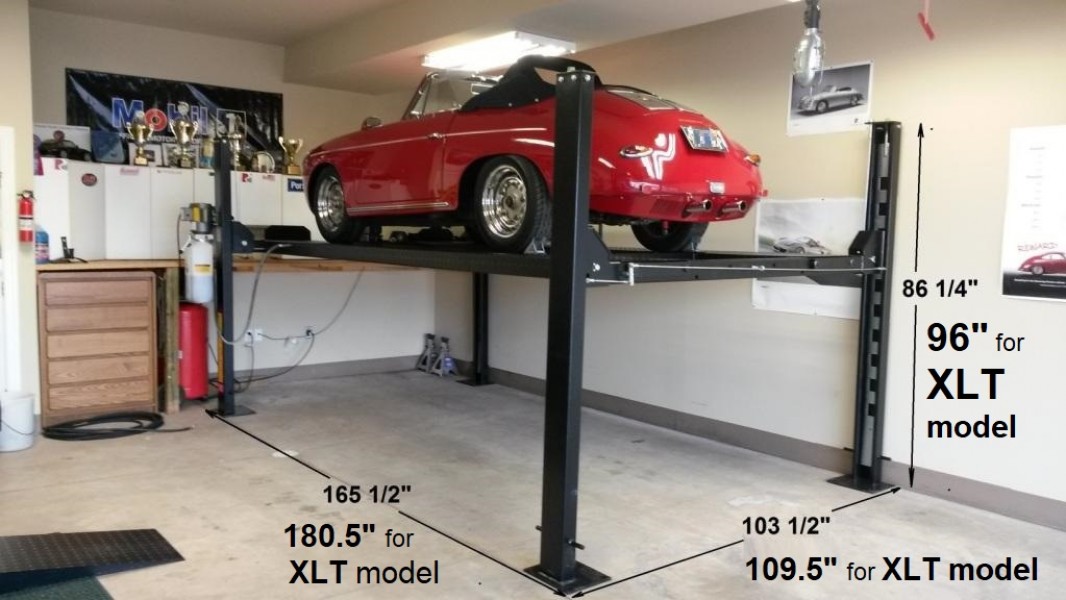

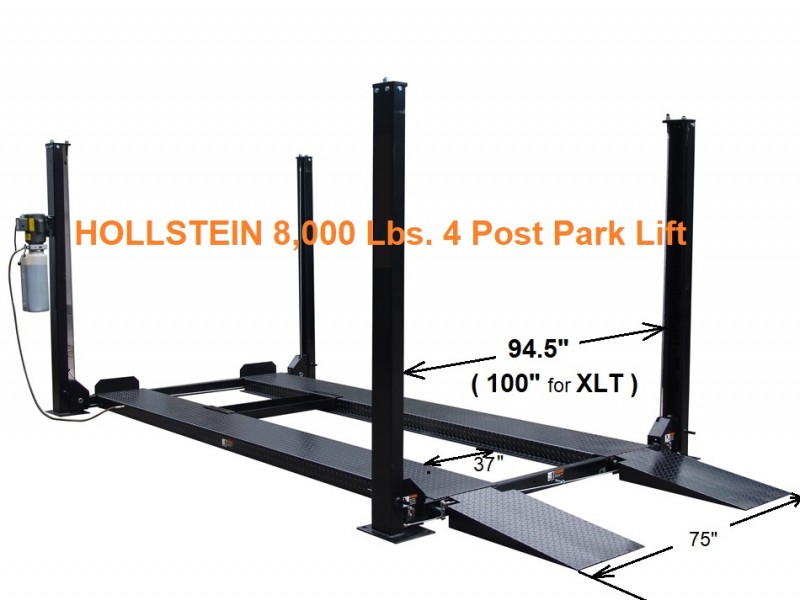

| Specifications; | HOLLSTEIN PARK8000 | HOLLSTEIN PARK8000XLT |
| Capacity | 8,000 lbs. | 8,000 lbs. |
| Lifting Height | 74.8" | 82.3" |
| Overall Length with Ramp | 207.3" | 222.5" |
| Overall Length without Ramp | 175.5" | 190.7" |
| Overall Width | 103.5" | 109.4" |
| Runway Tread Width | 18.7" | 18.7" |
| Runway Length | 165.5" | 180.5" |
| Runway Height | 4.3" | same |
| Column Height | 86" | 94" |
| Clearance Between Columns | 94.5" | 100.3" |
| Clearance between Runways | 37" | 42.2" |
| Outside Runway to Outside Runway | 74.8" | 80.7" |

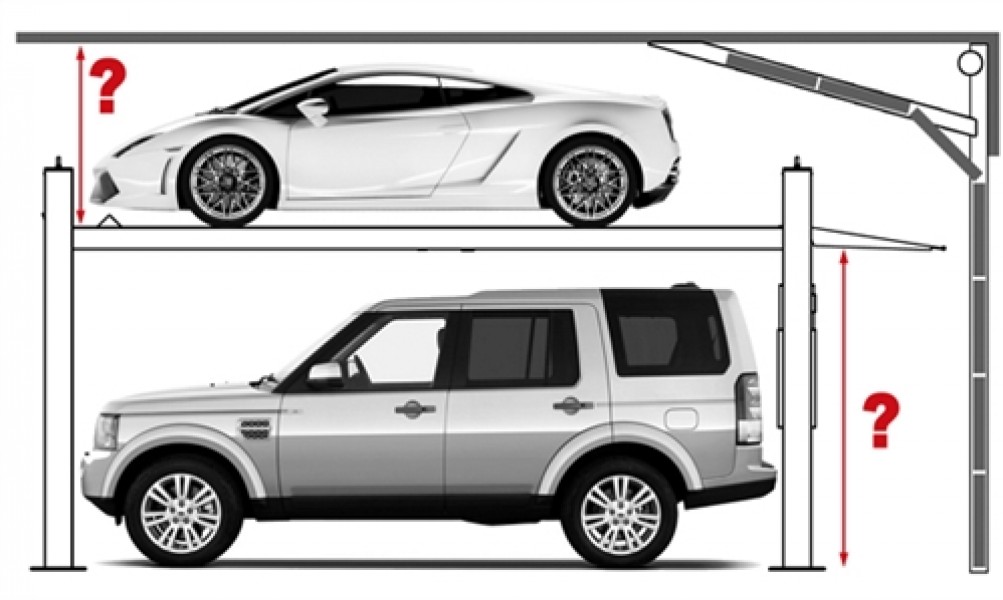

| Clearance Under Runways | 70" | 78" |
| Drive Thru Width | 80" | 87.2" |
| Locking Positions | 10 | same |
| Base Plate Size | 10” x 12" | same |
| Power | 110V Single Phase-15 Amp | same |
| Ship Weight | 1,560 lbs | 1,805 lbs |
| Package Dimension L x W x H |
14' x 21" x 28" |
15' - 6" x 21" x 28" |
